How Frog Designed A existence-Saving EpiPen For Heroin Overdoses

When Uma Thurman’s character OD’d via sniffing heroin in Pulp Fiction, she was brought back to life with a shot of adrenaline stabbed straight through her sternum into her coronary heart. but when you consider that 1961, medical doctors have in truth used a much more efficient drug to combat opioid overdoses. known as naloxone, it bonds with opioid receptors on your mind more effectively than illicit medicine, so it effectively washes heroin out of your mind to get up your gadget. It’s remarkably low-cost and will also be delivered with no needle, right up somebody’s nose.

however there’s a capture. Naloxone remains to be impractical to manage in actual-world conditions—the sort of foggy, traumatic setting where a drug overdose is taking place—as a result of it requires you assemble a seven-section equipment of elements, first. simply put, there’s no EpiPen of the naloxone world.

As heroin use is on the rise, Jonathan Grossman, industrial dressmaker on the world design firm Frog, changed into preoccupied by means of the situation at San Francisco’s methadone clinics. He realized just how mistaken naloxone administration is as of late, and in turn, despite that his passion had no client, he proposed to his team that he start working on a greater way. The syringe-shaped atomizer used now seems like an ideal low-tech answer to start with look. It squeezes liquid through a tiny tube, so small it turns the drug into a mist that can shoot into someone’s nasal cavity. however issues arise from how the atomizers are bought and disbursed.

They’re handed out by means of social provider companies in a Frankensteinian equipment of components, as every component should be bought from a unique arm of the scientific trade. The plunger comes from one factory. The tip every other. if you happen to have been to assemble it ahead of time, it could be like carrying a leaking syringe thru life. because it’s designed not to be constructed in advance and ready to go in an emergency, but to be pieced together as a nurse may, casually, in a sanatorium environment for instant use.

“There are too many caps,” says Grossman. “every part has a cap that covers the top, and in an emergency state of affairs it’s a must to pry off caps and nibs. And there’s a really precise assortment to make between the atomizer cap and body. If it goes in at an attitude, it’s in style that the drugs sprays out the side.”

He noticed different usability error, too. people building the syringe regularly would dangle the drug-crammed glass vile of their mouth, which could crack it. And as soon as the whole machine was once assembled, the drug itself offered every other problem: It have to be carefully squirted in during the nostril, half of up one nostril, half of up the opposite, at simply the right attitude to be effective.

Nothing concerning the process is unattainable, but it requires the user to assemble seven numerous pieces, when “no longer everyone is in the fitting mind-set,” Grossman says. “individuals are freaking out. It’s a frightening scenario.”

So Grossman began exploring new forms for naloxone administration. He began with reexamining the syringe. What if it came preassembled? What if it didn’t even need a package? What if a lid on the front and back allowed it to reside, prepared to head, in anyone’s backpack? What if it was designed symmetrically, so its attitude of attack wasn’t so vital? They were all excellent ideas, taking part in out in a series of sketches and renderings Grossman produced and shared with colleagues.

but then he had a leap forward. What if there have been two related syringes, so you need to administer the drug up each nostrils at the comparable time? He checked with Frog’s resident doctor. was there a physiological motive that no one was doing this? No. And so Grossman examined out his personal hypothesis as a lab rat: He taped two syringes collectively, stuffed them each with water, aimed them up his own nose, and squeezed.

“It used to be absolutely fantastic,” he says, laughing. “you’re feeling like you may have a sore throat for a minute, and then it goes away.”

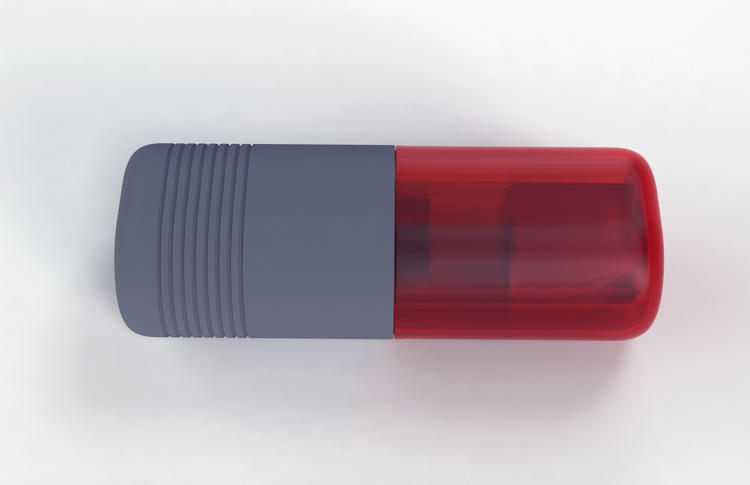

Over a couple of iterations of design, Grossman mixed all of his absolute best concepts, and then some. the final product is still an atomizing syringe—so nothing in regards to the core mechanism of drug delivery has modified. however a forking head fills each nostrils without delay. Plunger and tip lids permit it to be tossed into any person’s bag, like an EpiPen, with no 2nd concept. And in an extraordinarily suave bit of design, while the principle physique is a plastic, the plunger lid is constructed of a ridged rubber. put off it, and the plunger shares the identical material and end.

This rubbery material begs to be touched, and it serves as a unconscious cue to the drug’s administrator: this is the a part of the syringe that you’ll wish to push down. So even supposing anyone would not cognitively comprehend what they are doing in an emergency, they may intrinsically take into account the best way to use the instrument.

Frog admits that had been this to return to market—and the corporate is at present searching for the precise companions to make that happen, so get in contact!—there would more than likely be many tiny changes that may still need to be made for regulatory reasons and unexpected use circumstances. but the fact that a dual-nasal-atomizer doesn’t exist seems nearly unbelievable, provided that atomizers can be utilized as a needle different to all sorts of medicine beyond naloxone.

“various times, stuff gets created with very little thought in regards to the context it’ll be used. That’s now not simply in health care. There are numerous issues we use frequently, and we surprise, why doesn’t it work like this?” Lindsey Mosby, Frog’s govt strategy director and health care observe lead, says. “That disconnect between, right here’s what we will make, and right here’s what we will have to make, occurs rather a lot. I don’t need to say anything else that belittles how essential the best way we do our work is, but i feel any person can assume the best way we do. then again, it requires you get within the footwear of someone you’re designing for. And if you happen to don’t try this, you get what we have now these days: a equipment of parts with none kind of empathy or consideration of how this is used.”

And now, with the largest drawback of naloxone administration more or less solved with the aid of Frog, possibly we can all center of attention on the opposite large drawback of the drug—that with a brand new surge of demand, giant Pharma appears to be jacking up its value.
