Sketch life-Sized Objects With Sticky Tape Tubes the use of This three-D Printing Gun

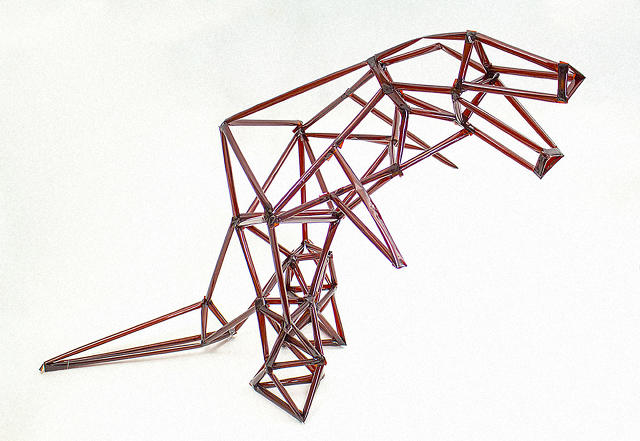

imagine with the ability to sketch out 3D wireframe objects in the real world. as an alternative of wondering whether that Ikea couch will fit in the living room, which you can just draw a lifestyles-sized variation of it and check. Or, say, build a snappy Christmas tree.

That’s what the Protopiper does. It’s a little bit gun that extrudes hollow tubes from regular adhesive tape while you squeeze the set off, and the tubes are mechanically terminated with sticky connector tabs. “since the ensuing tubes are hollow they offer excellent strength-to-weight ratio, and accordingly scale neatly to very large structures,” say the authors of the paper detailing the Protopiper.

the advantage of the usage of tape as a uncooked subject material is that it is pre-coated with adhesive, so it doesn’t wish to be heated or in any other case treated to print an object. it is also fairly low cost and simply to be had.

For anyone who has tried to type tape into a tube, or simply to forestall it from sticking to itself and making a pointless clump, the Protopiper may appear like a miracle. It pulls the uncooked strips via a series of “stencils” to slowly raise the curvature, until it turns into a tube, and the gun presses the overlapping edges collectively. but there’s slightly more to it than that. The Protopiper has a small computer mind to add a couple of very useful extras.

There are three types of termination. One squeeze of the set off will reduce the end of the tube clean off. Two squeezes will give a “wing” lower, which is 2 sticky tabs ready to wrap around the subsequent tube. 0.33 is a hinge, which is a managed kink within the tube.

the other trick is dimension. The Protopiper can produce tubes of a suite length. additionally, in case you double-faucet the extrusion set off, it’ll replicate the size of the previous tube, so that you may easily build common shapes like cubes.

the most obvious use is for designers to speedy prototype ideas, however the ensuing structures are additionally robust sufficient to make easy objects for precise use. and picture getting the sort of into the arms of a child. it is usually the most superb toy ever invented.
